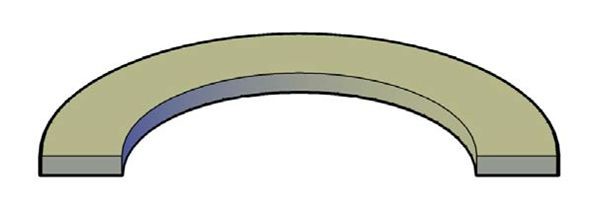

Excavator Hydraulic Seal BRT2 Back-Up Ring
The back-up ring is used to increase the service life of the seal. For the selection of the retaining ring material, it is required to have the characteristics of being easy to compress and deform when pressurized and difficult to be extruded. In addition, during compression deformation, it moves due to contact with the opposed sliding surface, so wear resistance and low friction characteristics are also important
BRT2 Back Up Ring Size:
| Size | Material |
| 10*18*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 12*20*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 12.5*20*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 14*22*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 16*24*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 17*25*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 18*26*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 20*28*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 20*30*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 22*30*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 22.4*30*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 23.5*31.5*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 24*32*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 25*33*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 25*35*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 26*34*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 27*35*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 27.5*35.5*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 28*35.5*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 28*36*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 30*38*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 30*40*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 30*40*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 31.5*41.5*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 32*42*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 33*43*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 34*44*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 35*45*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 35*45*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 35.5*45*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 35.5*45.5*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 36*46*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 38*48*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 40*50*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 40*50*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 45*55*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 45*55*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 45*56*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 46*56*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 50*60*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 50*60*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 53*63*2 | POLYAMIDE(PA) |
| PTFE 19YF |
| 53*63*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 55*65*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 55*65*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 56*66*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 58*68*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 60*70*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 60*70*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 60*71*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 61*71*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 62*75*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 63*73*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 65*75*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 65*75*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 65*80*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 67*77*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 67*80*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 70*80*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 70*85*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 71*80*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 72*85*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 75*85*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 75*90*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 77*90*2.5 | POLYAMIDE(PA) |
| PTFE 19YF |
| 80*90*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 80*95*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 85*95*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 85*100*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 85*105*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 86*100*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 89*104*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 90*100*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 90*105*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 90*110*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 95*110*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 95*115*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 96*111*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 98*112*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 100*115*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 100*120*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 105*120*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 105*125*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 106*120*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 110*125*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 110*130*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 112*125*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 115*130*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 115*135*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 118*132*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 118*133*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 120*135*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 120*140*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 125*140*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 130*145*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 130*150*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 132*145*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 135*150*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 136*150*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 140*155*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 145*160*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 150*165*3 | POLYAMIDE(PA) |
| PTFE 19YF |
| 155*170*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 160*175*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 165*180*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 170*185*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 170*190*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 175*190*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 180*200*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 190*210*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 190*215*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 195*215*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 200*220*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 200*225*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 204*224*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 205*225*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 210*230*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 210*235*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 220*240*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 220*245*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 224*244*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 230*250*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 240*260*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 240*265*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 250*270*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 255*280*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 260*280*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 265*290*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 275*300*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 280*300*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 295*315*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 300*320*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 335*355*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 355*375*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 380*400*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 400*420*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 450*470*4 | POLYAMIDE(PA) |
| PTFE 19YF |
| 500*525*4 | POLYAMIDE(PA) |
| PTFE 19YF |
PU Material Performance Characteristics:
(1) Specific gravity: lighter.
(2) Mechanical properties: good impact resistance, but high water absorption.
(3) Wear resistance: self-lubriC-A-Ting, low abrasion, mostly used in the manufacture of shaft sleeves, gears, scroll bars and other products.
(4) Electrical performance: Due to the influence of moisture and crystallinity, it can only be used for components with comprehensive performance in electronic and electrical.
(5) Flammability: self-extinguishing.
(6) Chemical resistance: In addition to strong acids, strong alkalis, zinc chloride and other chemicals, it is resistant to various chemicals.
(7) Heat resistance: high heat resistance, for example, the softening point of PA66 is 260°C, PA6 is 224°C, and PAl2 is 117°C.
(8) Breathability; low permeability for O and CO, suitable for food packaging film. Due to its high air permeability, it can also be solved by a multilayer composite process with aluminum foil.
(9) After the glass fiber is reinforced, the water absorption and dimensional stability can be greatly improved.
PA Performance Characteristics:
1. High strength: working pressure 0.6~4 OMpa;
2. Maximum working pressure is much higher than existing plastic pipes;
3. Lightweight: the weight is only 1/7 of the steel pipe, and the weight in the water is only 1/48 of the steel pipe;.
4. Wear resistance: under the same working conditions, the wear resistance is 3~4 times that of steel;
5. Temperature resistance: working temperature is-40C~150C, not cold and brittle at low temperature;
6. Corrosion resistance: resistant to strong alkali, weak acid and most salt media;
7. Large diameter: the product diameter is 160~1000mm, the maximum diameter is larger than the existing plastic pipe diameter;
8. Low friction: Under the same working conditions, the pipeline pressure loss is only 2/3~4/5 of the steel pipe;
9. Impact resistance: impact toughness is equivalent to steel pipe;
10. Anti-aging: The service life in the field can reach more than 50 years;
11. Easy connection.
Back Up Ring OEM Number:
GN5418V0
GN5723V0
GN5724V0
GN5719V0
GN5720V0
GN5725V0
GN4778V0
GN4780V0
GN4781V0
GN5726V0
GN4784V0
GN4786V0
GN5727V0
GNGN5019V1
GN4787V0
GN5728V0
GN5707V0
GN5708V0
GN4791V0
GN5715V0
GN5729V0
GN4662V0
GN4794V0
GN4796V0
GN5730V0
GN5731V0
GN5732V0
GN5765V0
GN4799V0
GN4801V0
GN5716V0
GN5733V0
GN5365V0
GN4672V0
GN4050V0
GN5480V0
GN4804V0
GN4805V0
GN5709V0
GN4976V0
GN4335V0
GN5511V0
GN4693V0
GN5766V0
GN4810V0
GN4766V0
GN5641V0
GN5525V0
GN4676V0
GN4812V0
GN4629V0
GN5712V0
GN4814V0
GN5767V0
GN4816V0
GN4549V0
GN4697V0
GN5768V0
GN4651V0
GN4876V0
GN4818V0
GN5769V0
GN4692V0
GN4971V0
GN5770V0
GN4820V0
GN5023V0
GN4757V0
GN4687V0
GN4821V0
GN4982V1
GN5734V0
GN5735V0
GN4698V0
GN4109V0
GN4822V0
GN4823V0
GN5736V0
GN4824V0
GN4512V0
GN4119V0
GN5198V0
GN4825V0
GN4826V0
GN4480V0
GN4280V1
GN4827V0
GN4593V0
191-5647
1915647
GN4574V0
GN5414V0
GN5718V0
GN5036V0
GN4132V0
GN4481V0
GN4628V1
GN4142V0
GN5737V0
GN5025V0
GN4830V0
GN4526V0
GN4551V0
155-9103
1559103
GN4833V0
GN4834V0
GN4835V0
GN4836V0
GN5464V0
GN4529V0
GN4839V0
GN4470V0
GN4841V0
GN4577V0
GN5746V0
GN4385V0
GN4560V0
GN4842V0
GN5710O0
GN4627V0
GN5758V0
GN4444V0
GN5754V0
GN5132V0
GN4635V0
GN4845V0
GN4428V1
GN4459V0
GN4846V0
GN5563V0
GN4848V0
GN4852V0
GN5459V0
GN5738V0
GN5581V0
