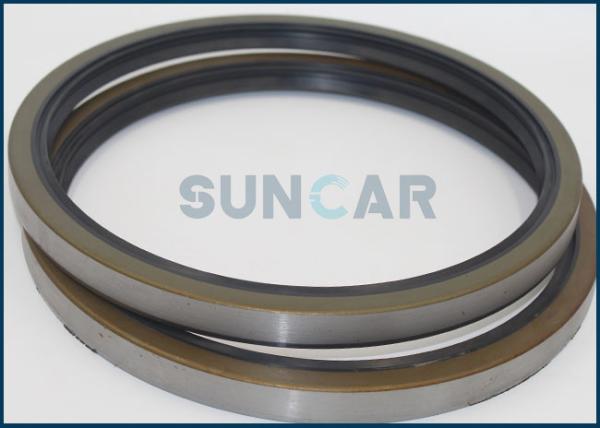

4417906 Oil Seal fits HITACHI Swing Device And Transmission ZX240-3 ZX240H
Description: Also known as an oil seal, shaftseal, or lip seal. Its function is to exclude dust, dirt, water or any other contaminant on one side
whilst retaining lubricant on the other. Generally it has been developed as a means of protecting the bearings of rotating shafts.
The basic operation of a shaft seal has the flexible lip held against the rotating part (usually the shaft) whilst the casing (or O.D.) is pressed into
the housing or bore holding the seal in place. The sealing lip needs some form of lubriC-A-Tion to avoid overheating and are usually energized by
means of a garter spring.
| Product name | 4417906 Oil Seal fits HITACHI Swing Device And Transmission ZX240-3 ZX240H |
| Brand name | SUNCAR |
| MOQ | 10 Pcs/ Trial order is accepted |
| Feuture | Sealing Performance, Heat Resistance, gas tightness, water resistance, Oil Resistance |
| Relative type oil seal | TC TB TCV TCN TCK VC DB DC DCY TC4Y MG WT SC SB DC DB WT WTT MOX MOD MOY TC4 TB4 KC KB TCJ VAJ OKC3 OC QLFY etc. |
| Terms of payment | L/C, D/A, D/P, T/T, Paypal,Western Union, |
| Packing | PP Bag Inside,Carton Box Outside. |
| Original place | Guangdong provice,China |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| Availability | Have enough stock for selling |
| Port of loading | Huangpu Port,China |
| Condition | 100% new |
| Abrasion | Good |
| Friction | Low |
| Standard or not standard | Standarded products |
| Oil seal type | Tractor oil seal |
| Temparature | -40℃ ~ 120℃ (NBR) -20℃~250℃(FKM) |
| Shape | Round |
| Part number | 4417906 |
Our Main Product Lines Applied to All Excavator Brand and Models, Partially Listed As Below:
KOMATSU
PC50UU, PC28UG, PC40, PC50UG, PC56, PC60, PC75, PC100, PC120, PC128UU, PC75UU, PC130, PC55MR, PC210-8, PC60-8, PC110-7, PC130-7, PC160LC-7, PC200-8, PC200LC-8, PC210LC-8, PC220-8, PC240LC-8, PC270-8, PC300-7, PC360-7, PC400-8, PC450-8
HITACHI
EX40, EX60, EX150, EX100M, EX100-2/3/5, EX120-3/5/6, EX150, EX200-1-2-3, EX220-3/5/6,
EX240, EX270, EX300-1/3/5/6, EX330, EX320-3, EX350, EX360, EX400-1/2/3/5/6, UH08, UH07, ZX55, ZX70, ZX100-1/2, ZX200, ZX210, ZX230-5, ZX240, ZX330, ZX360
C-A-T
E110B, E200B (E320), E240 (MS180), E300B, E330, D3C, D5, D5B, D5D, D6C, D6D, D6H, D7G, D8K
DAEWOO
DH220, DH280, DH55-5, DH60-7, DH80GOLD, DH80-7, DH130-2, SOLARS130, DH220-2/3/5, DH200, DH225-7, DH280-3, DH258, DH215-9, DH225LC-9, DH320, DH320-2/3, DH300LC-7, DH420LC-7
HYUNDAI
R55-7, R55-7S, R60-7/9, R110-7, R80-7, R130LC-5, R150W-7, R150LC-7, R190LC-5, R200, R215-7, R210, R225LC-9T, R245-7, R225LC-7, R260LC-7, R265LC-7, R275LC-9T, R305LC-9T, R305LC-7, R335LC-7, R370LC-7, R385LC-9T
KATO
HD140, HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880
KOBELCO
SK07N2, SK07-7, SK04-2, SK09, SK12, SK40, SK60, SK120-1/2/3, SK100-2/3, SK160, SK140, SK200, SK200-8S, SK220, SK230-6, SK260-8, SK250-8, SK260LC-8, SK210LC-8, SK300, SK320 , SK330-8, SK350LC-8, SK380D
SUMITOMO
SH110, SH120, SH120-1/2/3/5, SH125X-3, SH130-3/5, SH135X-3, SH145, SH150, SH160, SH180, SH200-1/2/3, SH210-5, SH210A5, SH210LC-5, SH200LC-3, SH225X-3, SH260, SH265, SH280, SH300, SH300-2, SH330LC-3, SH330-3, SH350-5, SH350-3B, SH340, SH400, SH400-3, SH450HD-3B
SUNCARSUNCARSUNCARSUNCARVOLVO
EB14, EB16, EC15, EC15T, EB22, EB27, EB28, EC45, EC55, EC55B, EC110, EC120, EC130, EC140, EC140B, EC145B, EC160, EC160B, EC170, EC200, EC200B
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction
6). High power, fast speed, long service life, low distortion and less space

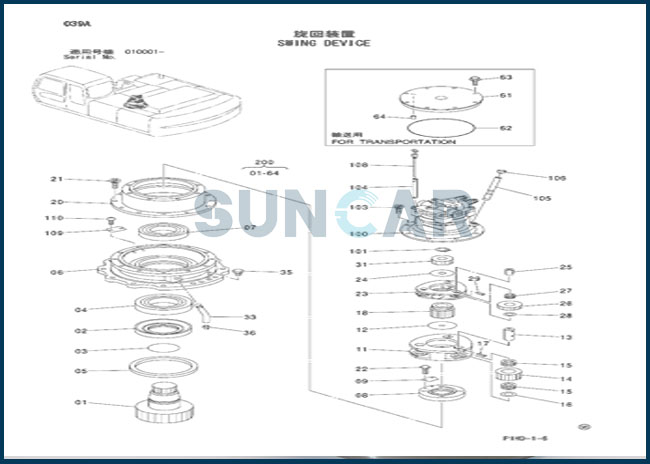

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 1 | 2043409 | [1] | SHAFT;PROP. |
| 2 | 3085038 | [1] | SLEEVE |
| 3 | A811130 | [1] | O-RING |
| 4 | 4417903 | [1] | BRG.;ROL. |
| 5 | 4417906 | [1] | SEAL;OIL |
| 6 | 1026916 | [1] | HOUSING |
| 7 | 4417904 | [1] | BRG.;ROL. |
| 8 | 3085037 | [1] | NUT |
| 9 | 4415042 | [1] | PLATE;LOCK |
| 11 | 1026826 | [1] | CARRIER |
| 12 | 4194454 | [1] | PLATE;THRUST |
| 13 | 4336925 | [3] | PIN |
| 13 | 4488904 | [3] | PIN |
| | | | |
| 14 | 3084655 | [3] | GEAR;PLANETARY |
| 15 | 4427630 | [6] | BRG.;NEEDLE |
| 15 | 4461644 | [6] | BRG.;NEEDLE |
| | | | |
| 15 | 4631475 | [6] | BRG.;NEEDLE |
| | | | |
| 16 | 4336929 | [3] | PLATE;THRUST |
| 17 | 4027427 | [3] | PIN;SPRING |
| 18 | 3084656 | [1] | GEAR;SUN |
| 20 | 1026808 | [1] | GEAR;RING |
| 21 | M341840 | [12] | BOLT;SOCKET |
| 22 | J901016 | [2] | BOLT |
| 23 | 1026812 | [1] | CARRIER |
| 24 | 4187590 | [1] | PLATE;THRUST |
| 25 | 4341941 | [3] | PIN |
| 26 | 3084652 | [3] | GEAR;PLANETARY |
| 27 | 4354748 | [3] | BRG.;NEEDLE |
| 28 | 4347635 | [3] | PLATE;THRUST |
| 29 | 4144018 | [3] | PIN;SPRING |
| 31 | 3084649 | [1] | GEAR;SUN |
| 33 | 3088126 | [1] | PIPE |
| 35 | 4445354 | [2] | PLUG |
| 36 | 94-2012 | [1] | PLUG |
| 61 | 8053415 | [1] | COVER |
| 62 | 4252835 | [1] | O-RING |
| 63 | J011250 | [8] | BOLT;SEMS |
| 63 | J271250 | [8] | BOLT;SEMS |
| | | | |
| 64 | 94-2011 | [1] | PLUG |
| 100 | 4423851 | [1] | MOTOR;OIL |
| 101 | 991342 | [1] | RING;RETAINING |
| 103 | M341228 | [8] | BOLT;SOCKET |
| 103 | M341230 | [8] | BOLT;SOCKET |
| 104 | 4264452 | [1] | PIPE |
| 105 | 4332658 | [1] | PIPE |
| 106 | 4343365 | [1] | CAP |
| 108 | 3074223 | [1] | GAUGE;LEVEL |
| 109 | 3053093 | [1] | NAME-PLATE |
| 110 | M492564 | [2] | SCREW;DRIVE |
| 200 | 9204193 | [1] | SWING;DEVICE |
