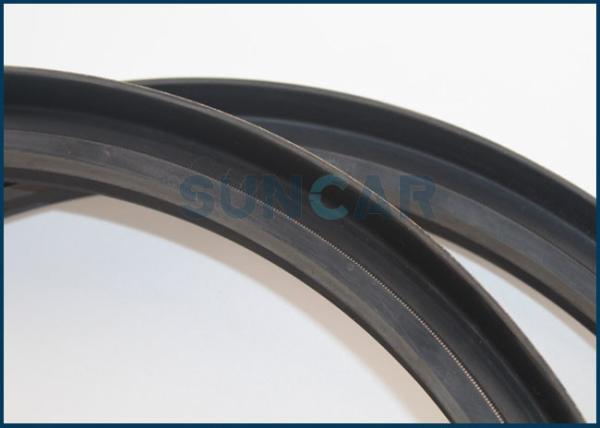

4334750 4424980 Oil Seal for Swing Device HITACHI EX400-3 EX400-5
Description: Oil seal is also known as rotary shaft seal. They are often called grease, fluid or dirt seals.
Oil seal is an integral part in any rotating and moving part assembly. They close spaces between Stationary and moving components in
mechanical equipment. An oil seal normally consists of Three basic components: The Sealing Element (the nitrile rubber part), the Metal CNH,
and the Spring. It is a widely used sealing component.
| Product name | 4334750 4424980 Oil Seal for Swing Device HITACHI EX400-3 EX400-5 |
| Brand name | SUNCAR |
| MOQ | 10 Pcs/ Trial order is accepted |
| Feuture | Sealing Performance, Heat Resistance, gas tightness, water resistance, Oil Resistance |
| Relative type oil seal | TC TB TCV TCN TCK VC DB DC DCY TC4Y MG WT SC SB DC DB WT WTT MOX MOD MOY TC4 TB4 KC KB TCJ VAJ OKC3 OC QLFY etc. |
| Terms of payment | L/C, D/A, D/P, T/T, Paypal,Western Union, |
| Packing | PP Bag Inside,Carton Box Outside. |
| Original place | Guangdong provice,China |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | HITACHI crawler excavator |
| Port of loading | Huangpu Port,China |
| Condition | 100% new |
| Abrasion | Good |
| Friction | Low |
| Shipping Weight (kg) | 0.8407 |
| Oil seal type | Tractor oil seal |
| Temparature | NBR(-40~120°C),FFKM(-20~320°C) FKM(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Shape | Round |
| Compatible models: | EX400-3;EX400-3C;EX450H-5;EX400-5 |
| Part number | 4334750 |
| Cross number | 4424980 |
Oil Seal Part Numbers For Your Reference:
| 4334750 | 4411143 | 4267227 |
| 4424980 | 4395197 | 4198921 |
| 4430715 | 4382769 | 4250325 |
| 4424512 | 4424516 | 4187681 |
| 4424982 | 4259936 | 2418R259 |
| 4422691 | 4253308 | 2418Z1448 |
| 4244691 | 4246275 | LQ32W01021P1 |
| 4417906 | 4203792 | YN32W01060P1 |
| 4604376 | 4281000 | SA7118-23330 |
| 4411535 | 4315104 | VOE14503938 |
| BW0760E | AP3053E | BW5669E |
| BW5602E | AP3409F | AP3618G |
| AD3842I | AP4063B | AP4282G |
| AP4346B | AD4399A | AD4451A |
| AD4542A | AD4581A | AD4624A |
| AA4390E | AP3409F | AD4346A |
| AD4346A | AD4399A | AE3527E |
| AE4063P | AP3409F | AP4212B |
| AW4068E | AP3994B | BC5667E |
Our Service:
1. Customized design: If your qty up to 100 pcs,we can customize for any size or material,packaging you need.If you have any requirement ,pls contact us,we will try our best to demand your requirement.
2. High quality: Products are enjoying great reputation for its diversifiC-A-Tion,Innovation,and Superior Quality
3. The most favorable price: We are manufacturer that can give you the most reasonable price.
4. Material safety: It is very safe for appliC-A-Tion and can be used with confidence in expected appliC-A-Tions.
5. More than 10 years experiend in construction machinery seal and seal kit line,so we can provide you professional service.
6. Large stock,welcome to place order.
7. Good timeliness , we have been delivering on time within the specified time.
8. Releasing new items periodically and customizing products to OEM quality
9. Excellent services and durable uses of products
10. Strict quality control
11. Fast delivery

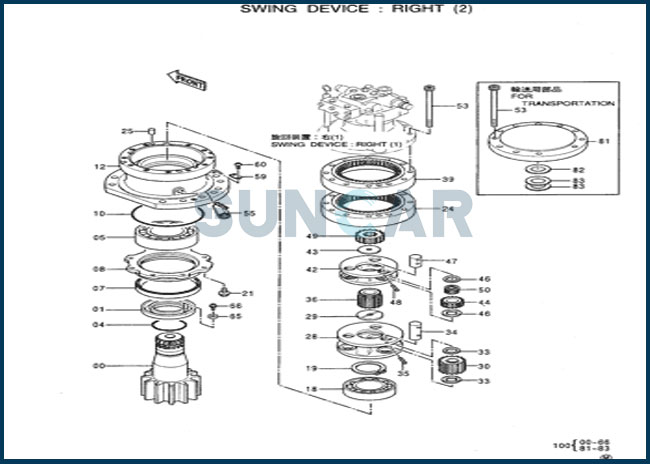

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| | 9133435 | [1] | SWING DEVICE :R |
| 0 | 1016164 | [1] | SHAFT;PROP. |
| 1 | 3045362 | [1] | SLEEVE |
| 1 | 3045362 | [1] | SLEEVE |
| 1 | 3045362 | [1] | SLEEVE |
| 1 | 3084390 | [1] | SLEEVE |
| 4 | A811120 | [1] | O-RING |
| 5 | 4327304 | [1] | BRG.;SPH.ROL. |
| 7 | 4334750 | [1] | SEAL;OIL |
| 7 | 4334750 | [1] | SEAL;OIL |
| 7 | 4424980 | [1] | SEAL;OIL |
| 7 | 4424980 | [1] | SEAL;OIL |
| 8 | 3060672 | [1] | COVER |
| 10 | 4210325 | [1] | O-RING |
| 12 | 1020571 | [1] | HOUSING |
| 18 | 4102848 | [1] | BRG.;SPH.ROL. |
| 19 | 991352 | [1] | RING;RETAINING |
| 21 | J011235 | [8] | BOLT;SEMS |
| 24 | 1011220 | [1] | GEAR;INTERNAL |
| 25 | J401640 | [2] | PIN;KNOCK |
| 28 | 1013272 | [1] | CARRIER |
| 29 | 4176073 | [1] | PLATE;THRUST |
| 30 | 9727844 | [3] | GEAR;PLANETARY |
| 33 | 4176072 | [6] | PLATE;THRUST |
| 34 | 4203534 | [3] | PIN |
| 35 | 4513294 | [3] | PIN;SPRING |
| 36 | 3038494 | [1] | GEAR;SUN |
| 39 | 2024516 | [1] | GEAR;INTERNAL |
| 42 | 1011219 | [1] | CARRIER |
| 43 | 4195372 | [1] | PLATE;THRUST |
| 44 | 3038496 | [3] | GEAR;PLANETARY |
| 46 | 4176072 | [6] | PLATE;THRUST |
| 47 | 4203533 | [3] | PIN |
| 48 | 4144020 | [3] | PIN;SPRING |
| 49 | 3038492 | [1] | GEAR;SUN |
| 50 | 4334731 | [3] | BRG.;NEEDLE |
| 53 | M341805 | [12] | BOLT;SOCKET |
| 55 | 4194712 | [1] | COCK |
| 59 | 3053093 | [1] | NAME-PLATE |
| 60 | M492564 | [2] | SCREW;DRIVE |
| 65 | 4204644 | [3] | MAGNET |
| 66 | J460514 | [3] | SCREW;SEMS |
| 81 | 8045520 | [1] | COVER |
| 82 | 4232537 | [1] | SHIM 0.5 |
| 83 | 4232696 | [3] | SHIM 1.0 |
| 100 | 9138912 | [1] | SWING DEVICE:R |
