191747A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L 580M 580N 580SM 580SM+ 580SN

Product Categories

GUANGZHOU SUNCAR SEALS CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 191747A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L 580M 580N 580SM 580SM 580SN
Brand: SUNCAR
Price: 1 USD

Brand Name : SUNCAR

Model Number : 191747A1 Seal Kit

CertifiC-A-Tion : ISO9001

Place of Origin : CN

MOQ : Accept trial order

Price : Negotiable

Payment Terms : T/T, Western Union,Alipay,paypal

Supply Ability : 550 Pcs Per Week.

Delivery Time : 3-5 days after payment received(public holiday excluded)

Packaging Details : PP bag inside,carton box outside.

Brand : SUNCAR

Feature : Durability,hard-wearing,higher-toughness

Color : Standard color

C-A-Talog : Hydraulic seal kit.

Availability : In stock

OEM service : Yes,accept,avaliable

Material : PTU

Part numbers : 191747A1

Contact Now

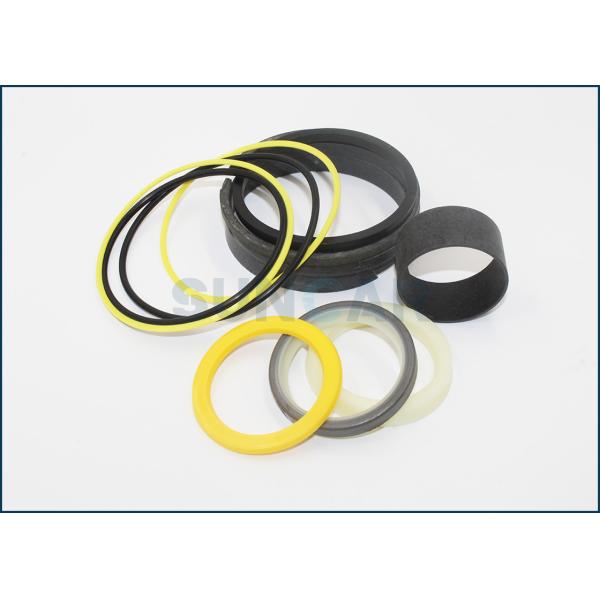

191747A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L 580M 580N 580SM 580SM+ 580SN

Name	191747A1 Seal Kit For Case Backhoe Loader Swing Cylinder
Model	570LXT 580L 580M 580N 580SM 580SM+ 580SN 7000 7700 A7000 A7700
Part numbers	1543262C1
Type	Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Case Cylinder Service Kits:

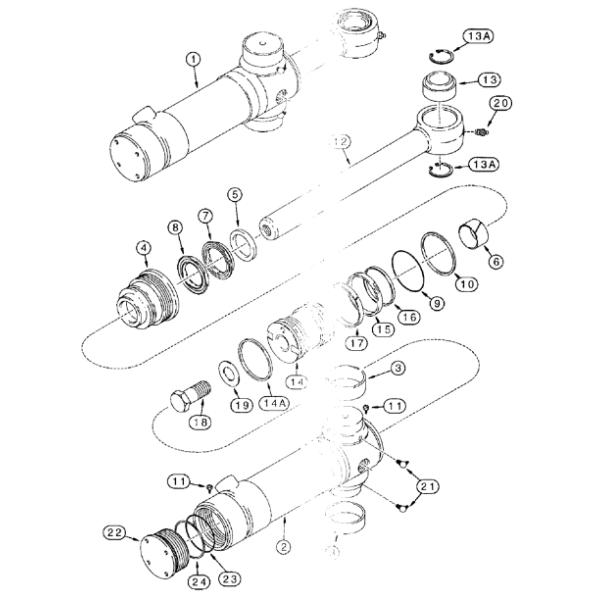

Parts on group (580L):

Pos.	Part No	Qty	Parts name
1	188027A1	[2]	CYLINDER
. .	188027A2R	[2]	REMAN-HYD CYLINDER
. .	188027A2C	[1]	CORE-HYD CYLINDER
2	188028A2	[1]	TUBE,527.7 mm Length
2	220165A1	[1]	TUBE
3	124568A2	[2]	RING,69.92mm ID x 77mm OD x 28mm L
. .	NSS	[1]	NOT SOLD SEPARAT
4	188032A1	[1]	GLAND
5	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
6	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
. .	1542876C1	[1]	SEAL KIT,50.8mm Rod
7	1543001C1	[1]	SEAL
8	1543000C1	[1]	SEAL
9	238-5237	[1]	O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro
10	G32126	[1]	BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk
11	276-2446	[2]	SELF-TAP SCREW,Hex Hd, #8 x 3/8"
12	177518A1	[1]	PISTON ROD
13	137248A1	[1]	RING,50.79mm ID x 80.96mm OD x 44.45mm W
13A.	100-21315	[2]	SNAP RING,3.156", Int, #315
14	188034A1	[1]	PISTON
14A.	191252A1	[1]	SEALING RING,85.9mm ID x 95.3mm OD x 4.7mm Thk
15	1340764C1	[1]	SEAL,Locking, 92.13mm ID x 96.85mm OD x 6.96mm Thk
16	1340763C1	[1]	RING,Square, 5.28mm Thk x 81.74mm ID
17	1980245C1	[1]	SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk
18	28-1664	[1]	BOLT,Hex, 1" - 14 x 4", Gr 8
19	G32303	[1]	WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk
20	219-1	[1]	LUBE NIPPLE,1/8" - 27 NPTF
21	219-55	[2]	LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
. .	188035A1	[1]	CYLINDER END CAP
22	188036A1	[1]	CAP,Ductile Iron
23	238-5239	[1]	O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
24	G109299	[1]	BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk
. .	191747A1	[1]	SEAL KIT

191747A1 Seal Kit For Case Backhoe Loader Swing Cylinder 570LXT 580L 580M 580N 580SM 580SM+ 580SN
